Used Genuine Apple

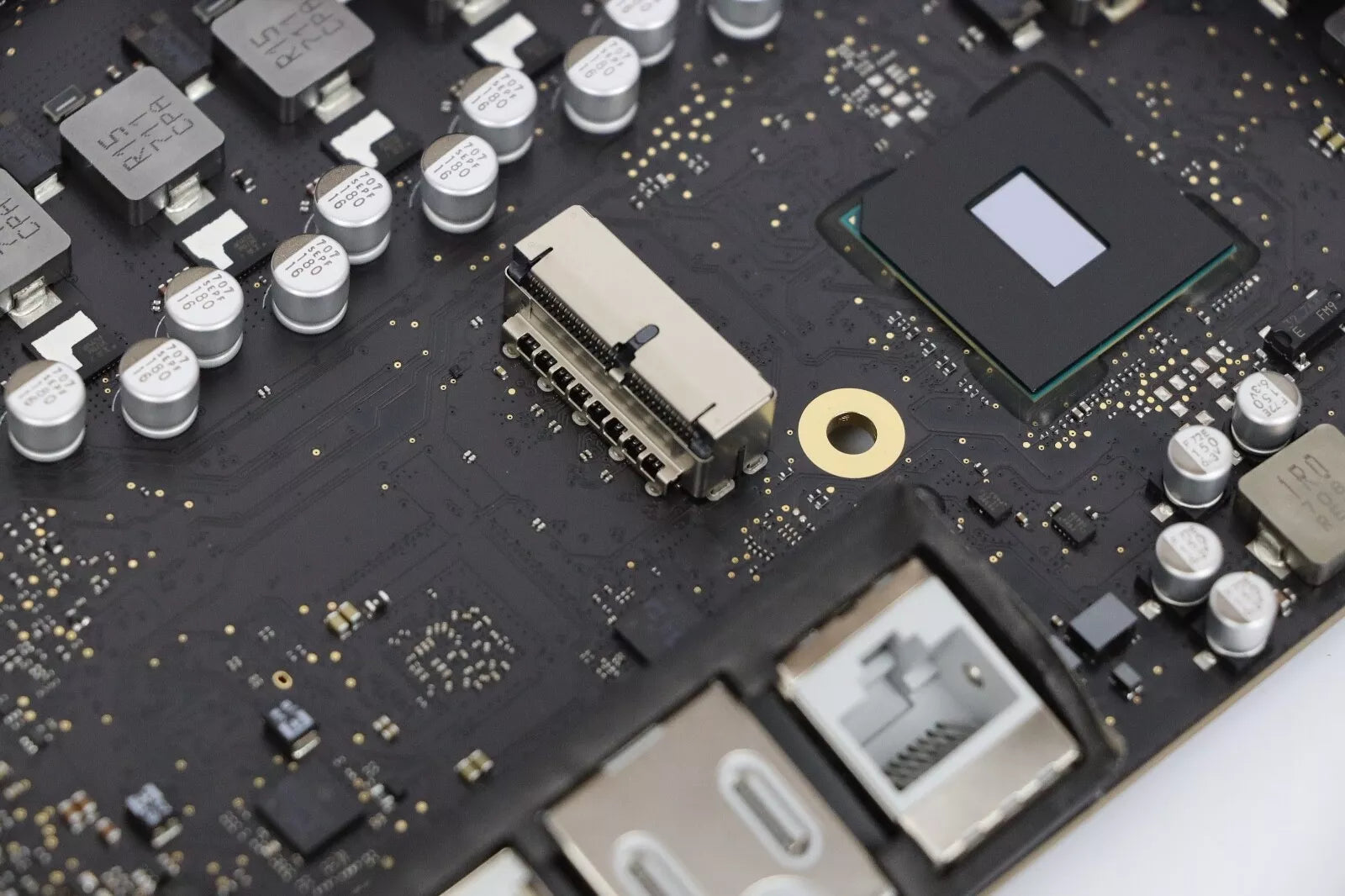

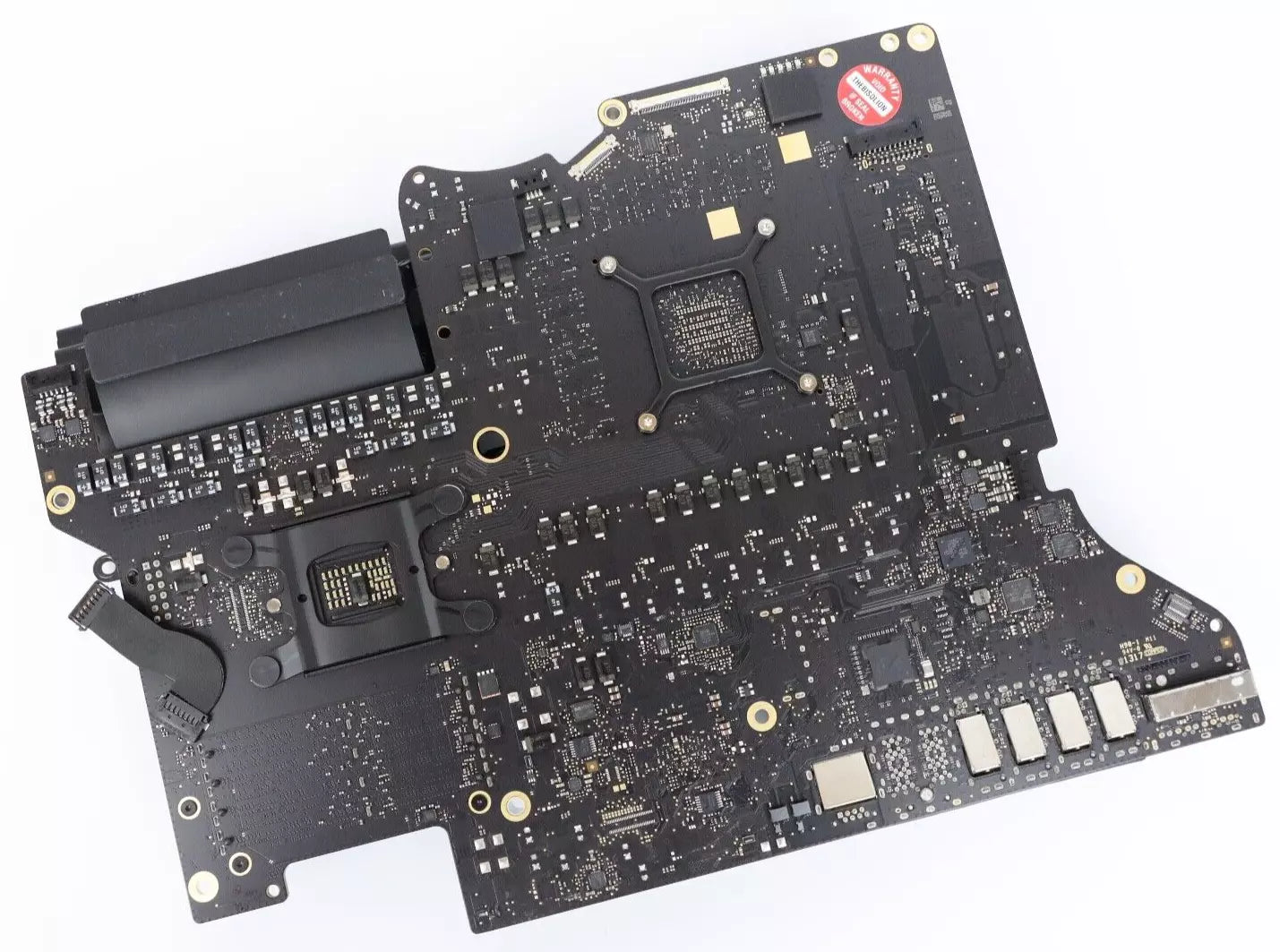

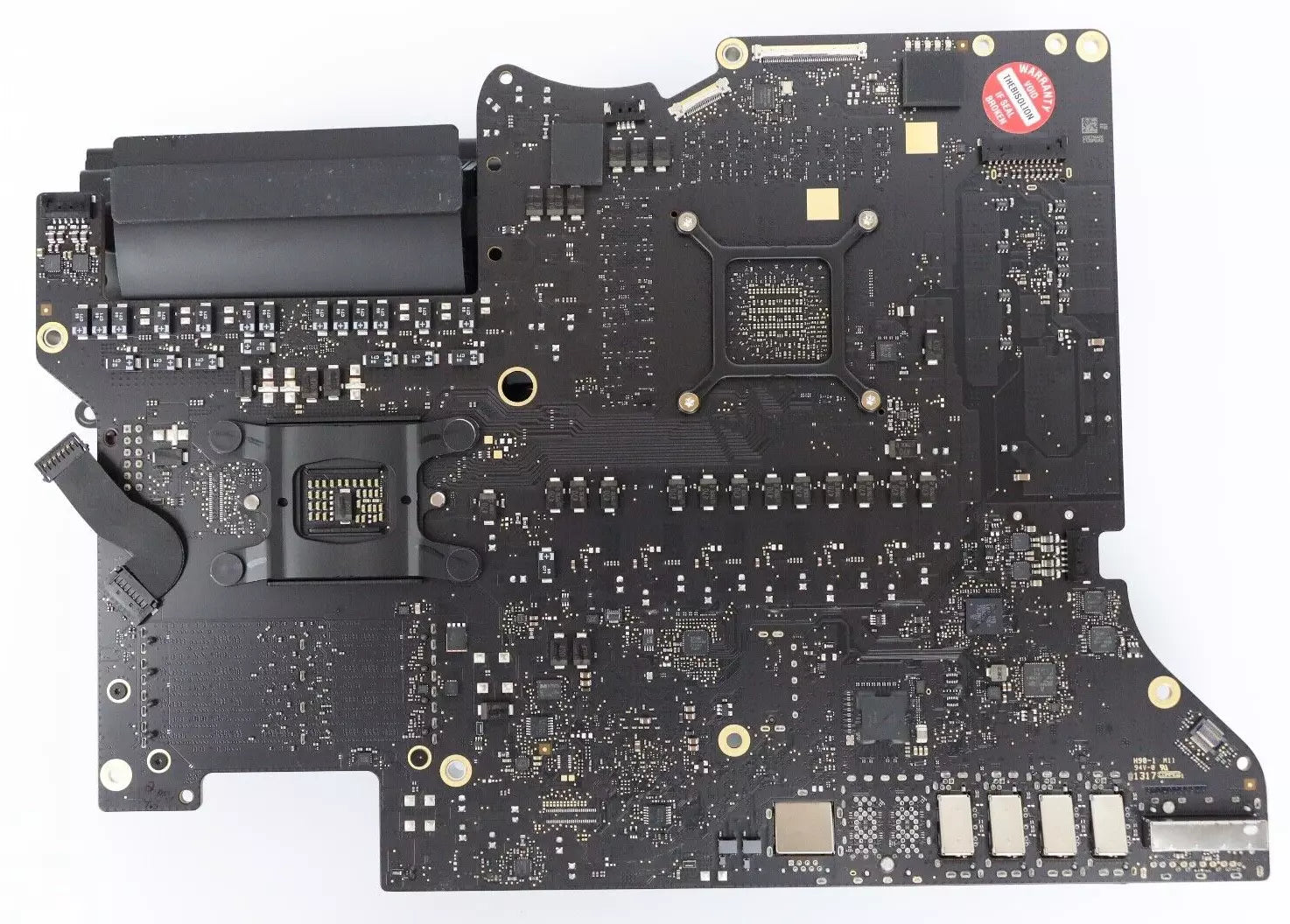

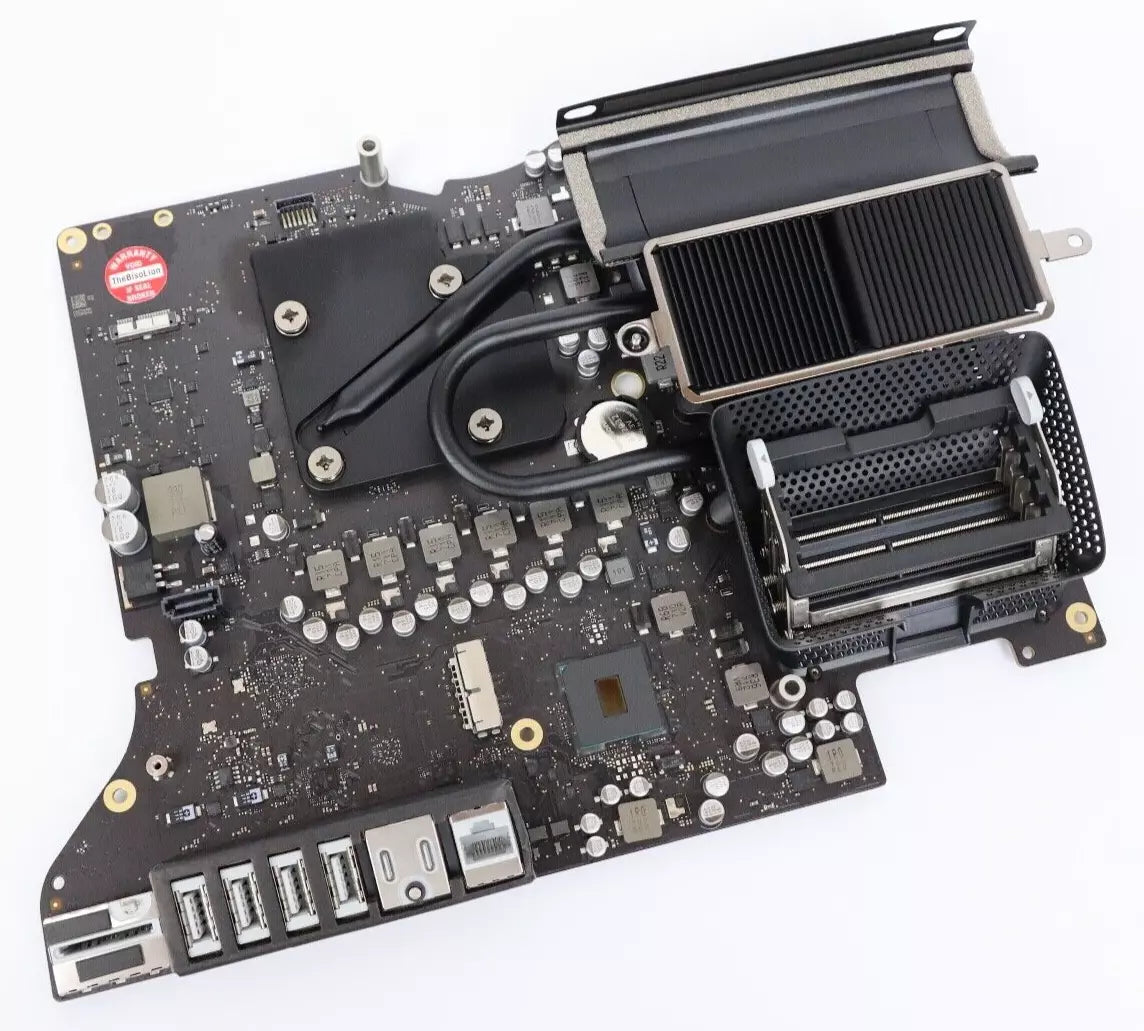

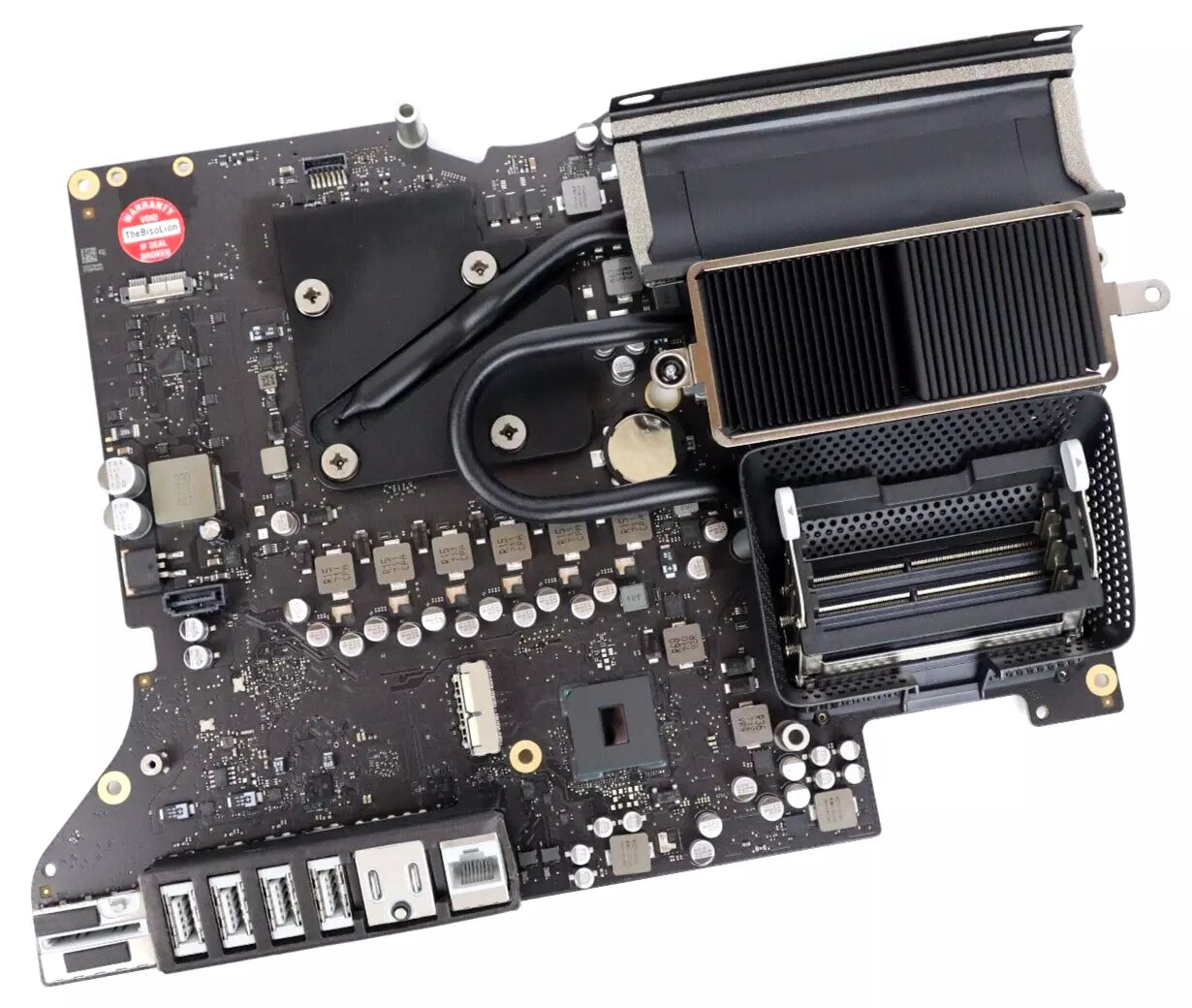

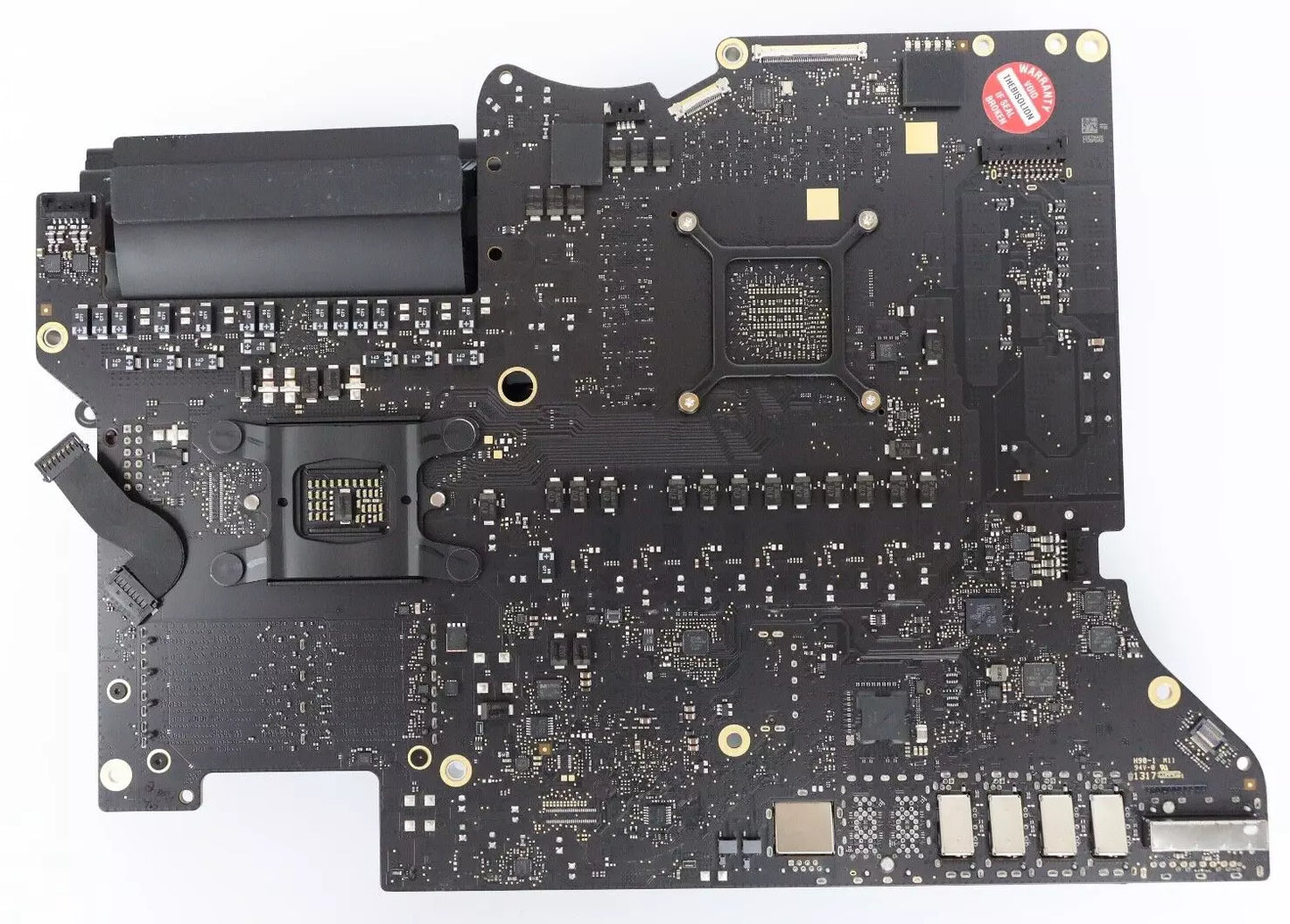

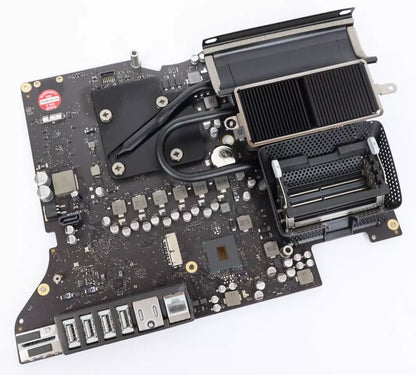

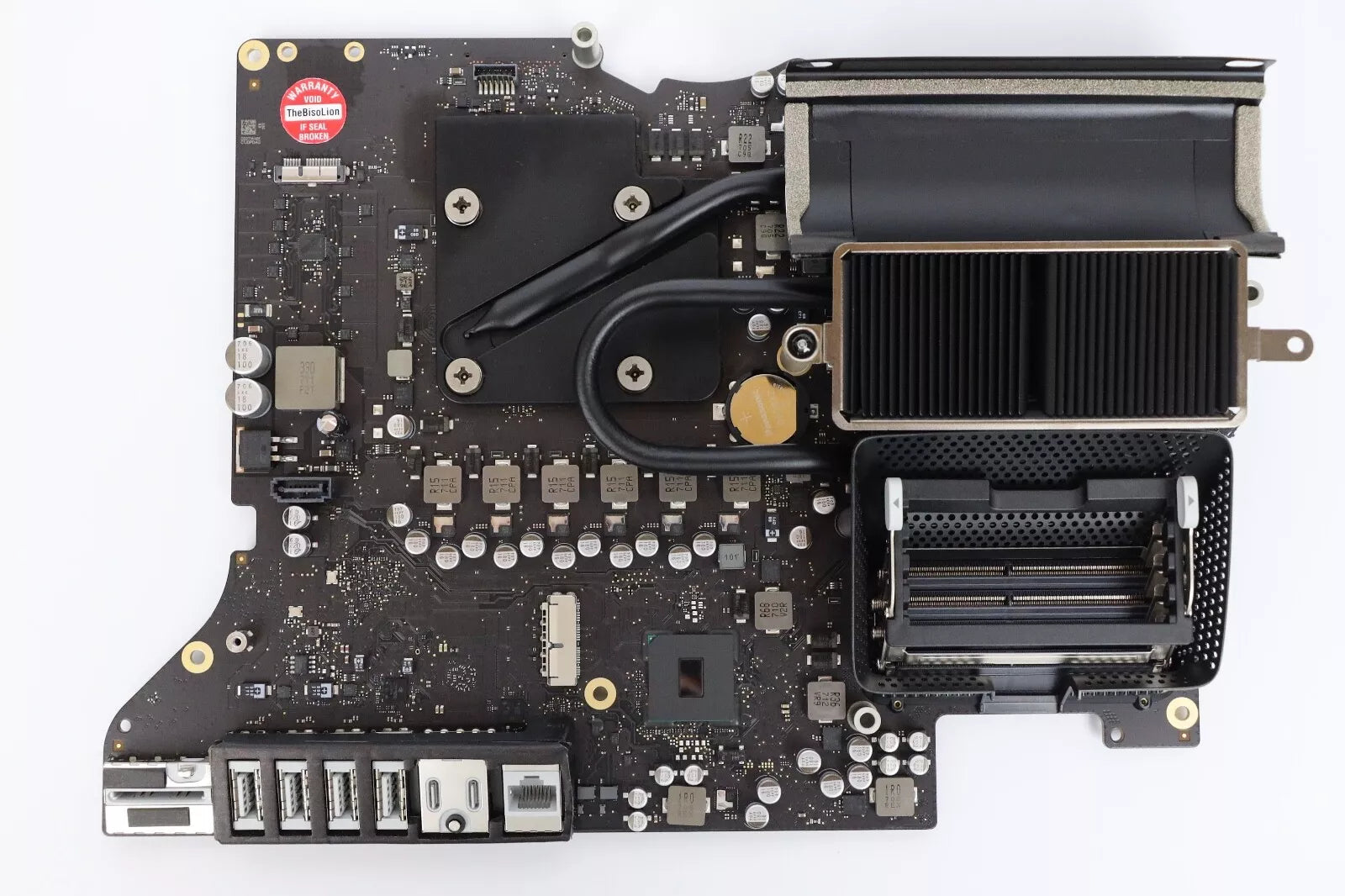

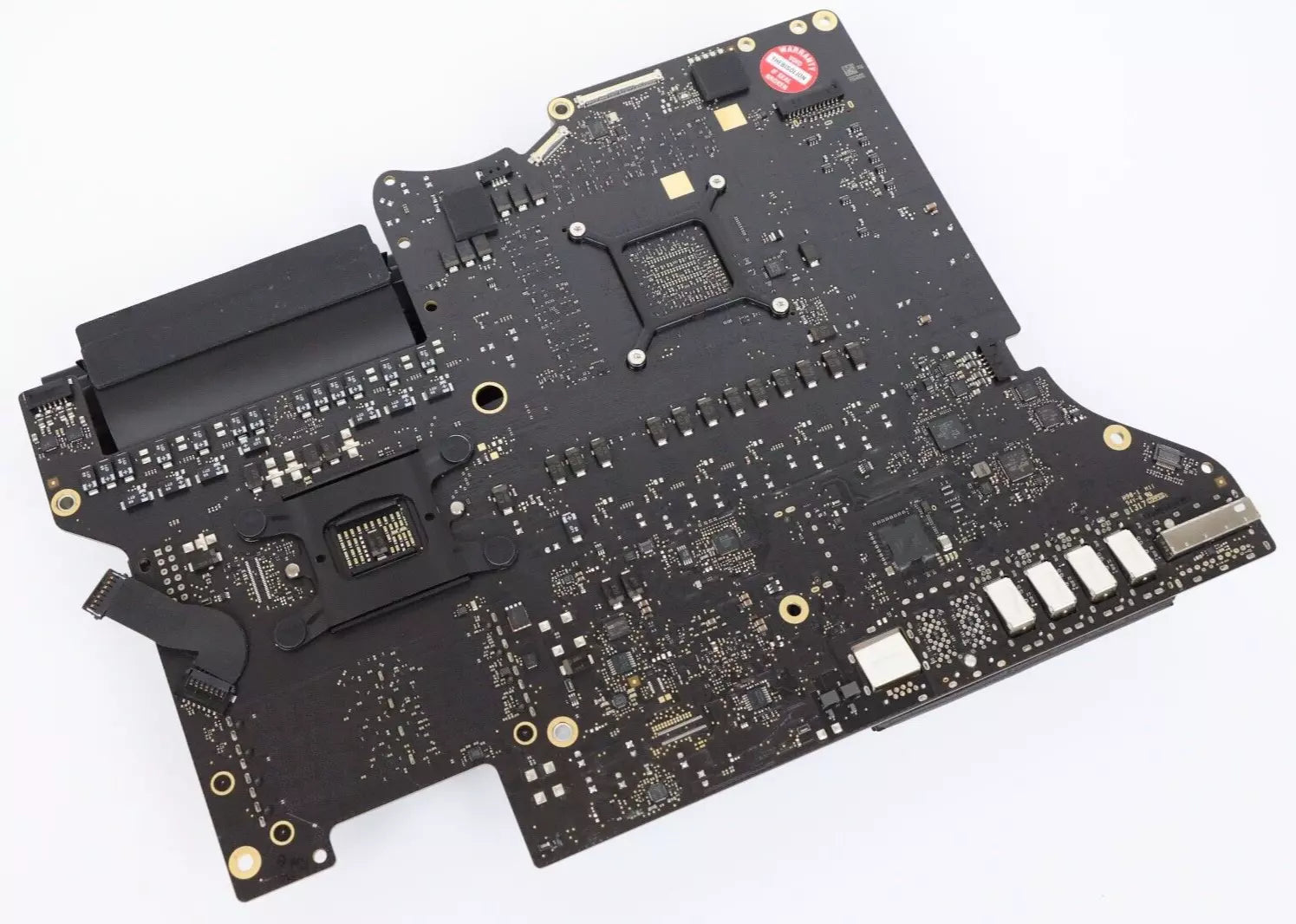

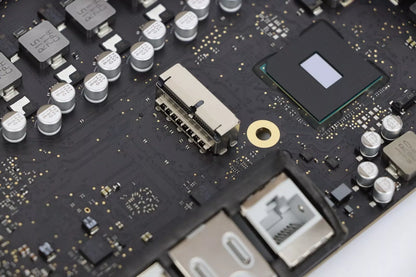

Logic Board 820-00609
Logic Board 820-00609
Regular price
€209,99 EUR
Regular price
Sale price
€209,99 EUR
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
These logic boards are only compatible with the iMac 27" A1419 with Mid 2017 release and Retina 5K LCD display assembly.
All of the options drop-in replacements for one another.
What's Included
Depends on the option selected.
Identifying Numbers
APN : 661-03378, 661-03379, 661-03382, 661-03383, 661-03384
MPN : 820-00609-A, 820-01134-A
Tech Specs
Onboard CPU: Intel 3.4GHz Core i5-7500, 3.5GHz Core i5-7600, 3.8GHz Core i5-7600K, or 4.2GHz Core i7-7700K
Onboard GPU: AMD Radeon Pro 570 (4GB), Radeon Pro 575 (4GB) or Radeon Pro 580 (8GB)
RAM Slots: Four (4)
Ethernet: 10/100/1000BASE-T (RJ-45)
USB: 4 - USB 3.0
Thunderbolt: 2 - Thunderbolt 3
Expansion Slots: SDXC SD Card
Compatibility:
*** Feel free to send us a message with your S/N and we can check compatibility for you.
iMac 27" A1419
- iMac18,3 Retina 5K Mid 2017: EMC 3070 - MNE92LL/A (3.4 GHz Core i5)
- iMac18,3 Retina 5K Mid 2017: EMC 3070 - MNEA2LL/A (3.5 GHz Core i5)
- iMac18,3 Retina 5K Mid 2017: EMC 3070 - MNED2LL/A (3.8 GHz Core i5)
- iMac18,3 Retina 5K Mid 2017: EMC 3070 - MNED2LL/A (4.2 GHz Core i7)
